BLC70/055 transfer and circulation pump is a stainless steel horizontal single stage centrifugal pump. They are lightweight and grant a stable, low noise reliable operation together with high performances. Ideal for water transfer and circulation for a variety of applications including irrigation, vat washing, aquaculture, CIP (Clean in place) and for situations requiring varying temperatures.


FEATURES:

• Rated for continuous use
• Liquid Type: Clean Water
• Temperature range: 0 - +104°C
• Maximum operating pressure: 8 bar
• Corrosion resistant

MOTOR FEATURES:

• Insulation class: Class F
• Protection class: IP55
• Thermal overload protection
• High temperature rated Carbon / Ceramic / Viton Mechanical shaft seal
• Pump Body: Stainless Steel 304
• Impeller: Stainless Steel 304
• O-rings: Viton
• Power Cable: 2m cable H07 3GI.
• Max Head: 20m
• Max Flow: 125 LPM

Single Phase

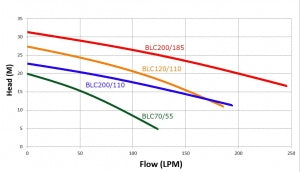

Performance is shown on the green line on the graph
