The HP202-HGX pump is a light weight, self-priming, engine driven pump supplied ready to operate complete with hose fittings and suction strainer.

Common Applications:

• General water transfer
• Equipment washdown
• Firefighting
• De-watering flooded areas
• Filling water trucks

Construction & Features

• 5.5HP (4.1kW)
• Max Flow rate: 300 LPM
• Max Pressure: 113 psi
• Self Priming: 6m Suction
• Max discharge head: 80 meters
• Inlet 2 inch (50mm)
• Outlet sizes 1.5 inch (40mm)
• Liquid temperature range: 2 - 35 deg C
• Maximum ambient temperature: 40 deg C
• Max operating pressure: 6 bar

• Honda GX200 4.1 kW (5.5HP) single cylinder, four stroke air cooled
• Comes with 600ml of 15W/40
• Easy to start and simple to operate
• Starting system: Recoil
• Maximum Engine Revs: 3600rpm
• Self priming for ease of use
• Cast iron head with cast iron impeller and volute
• Mechanical Seal: Carbon/Ceramic/Nitrile
• O rings and gaskets: Nitrile
• 3.1L fuel tank
• Run time per tank: 2-3 hours
• Engine oil capacity 600ml
• Heavy duty roll frame with rubber feet
• Low oil cut out system will prevent the engine from seizing should the pump tip over while running or run low on engine oil
• Package dimensions: 420 x 420 x 410
• Weight 28Kg

**We recommend a Hansen foot valve with a hose tail to be connected to the suction pipe.

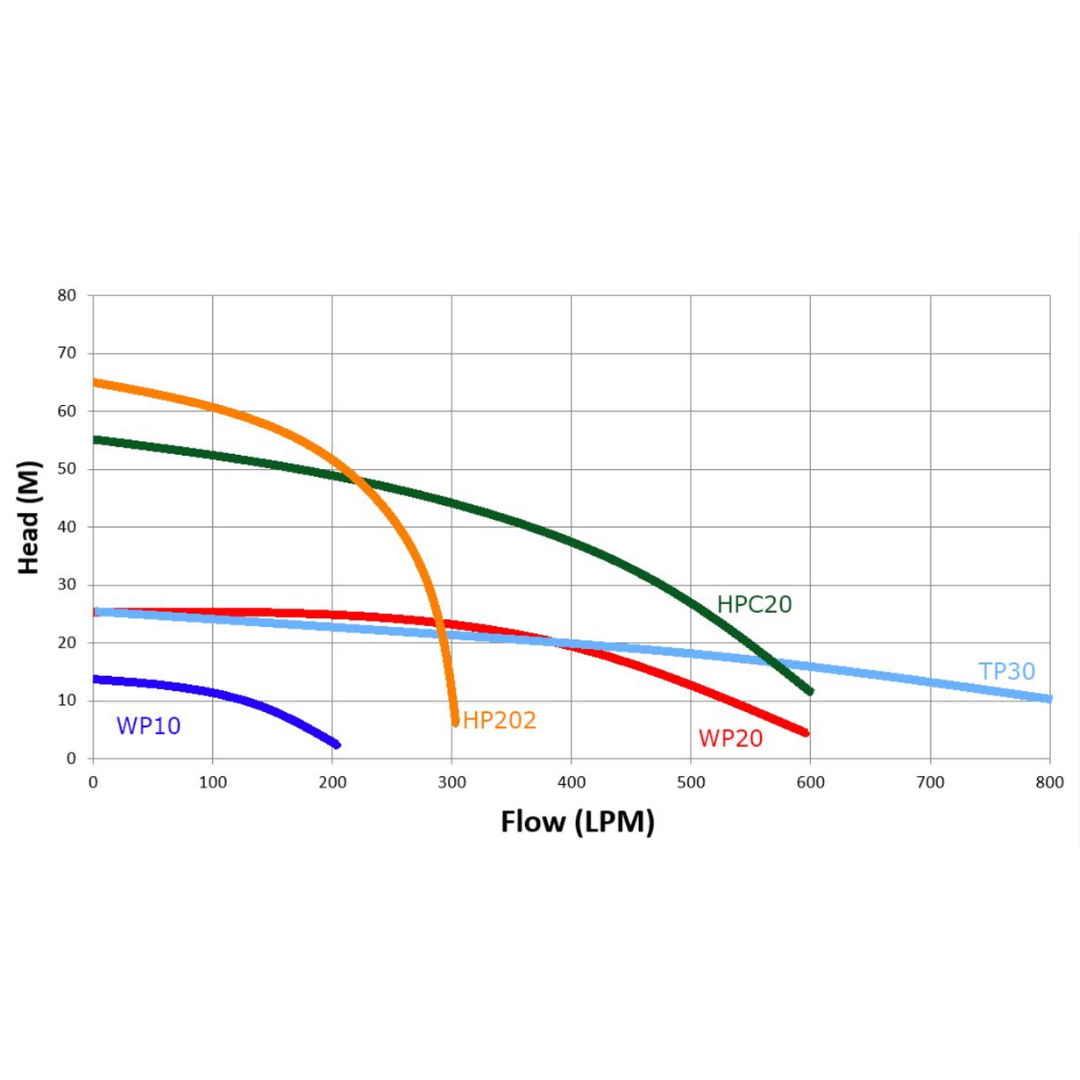

Pump Performance is shown on the orange line on the graph

 .
