The BCV-400 submersible pump is ideal for a number of applications including Effluent, Dirty Water, Drainage, Septic/Aerated Sewage Treatment, Grey Water and Irrigation.

Fitted with an anti-clogging vortex impeller it can process solids up to 50mm. A heavy duty and solid all-round pump that gets the job done.

Construction

• Fitted with a Float Switch for run dry protection
• Double mechanical seals with lip seals and oil chamber - Silicon/ceramic – protected with oil seal – exceptional durability
• Solid Cast Iron pump body and impeller for durability
• Non clogging Vortex impeller design - high passage clearance for sewage, dairy sheds, de- watering
• Power Cable length: 10m with 3 pin plug

Performance

• Liquid Temperature: 0°C to 40°C
• Protection Class: IP68
• Maximum Immersion Depth: 8M
• PH level: 6-8
• Rated for continuous use
• Thermal overload motor protection
• Maximum soft solids in suspension 50mm

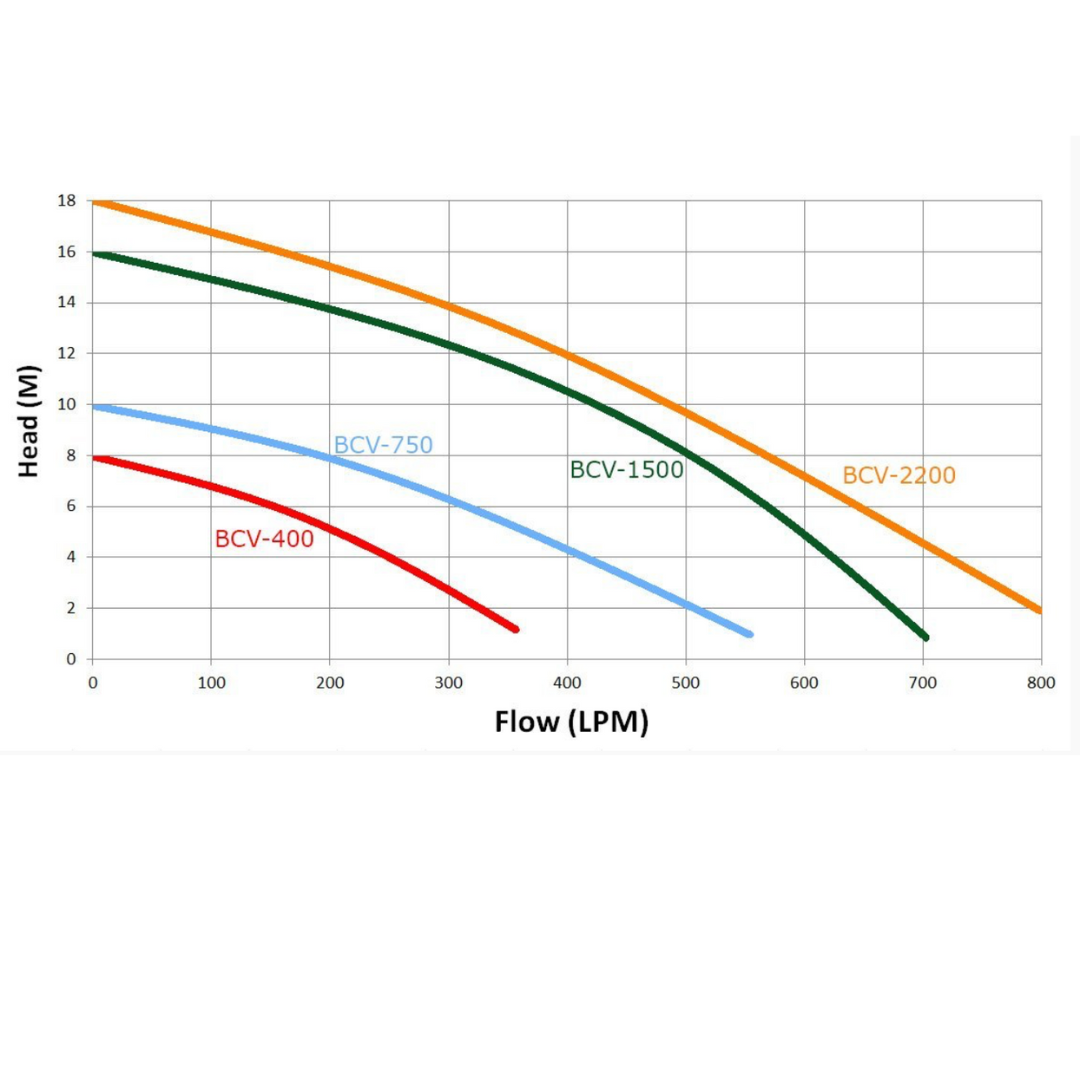

Pump Curve is shown in Red on the Graph

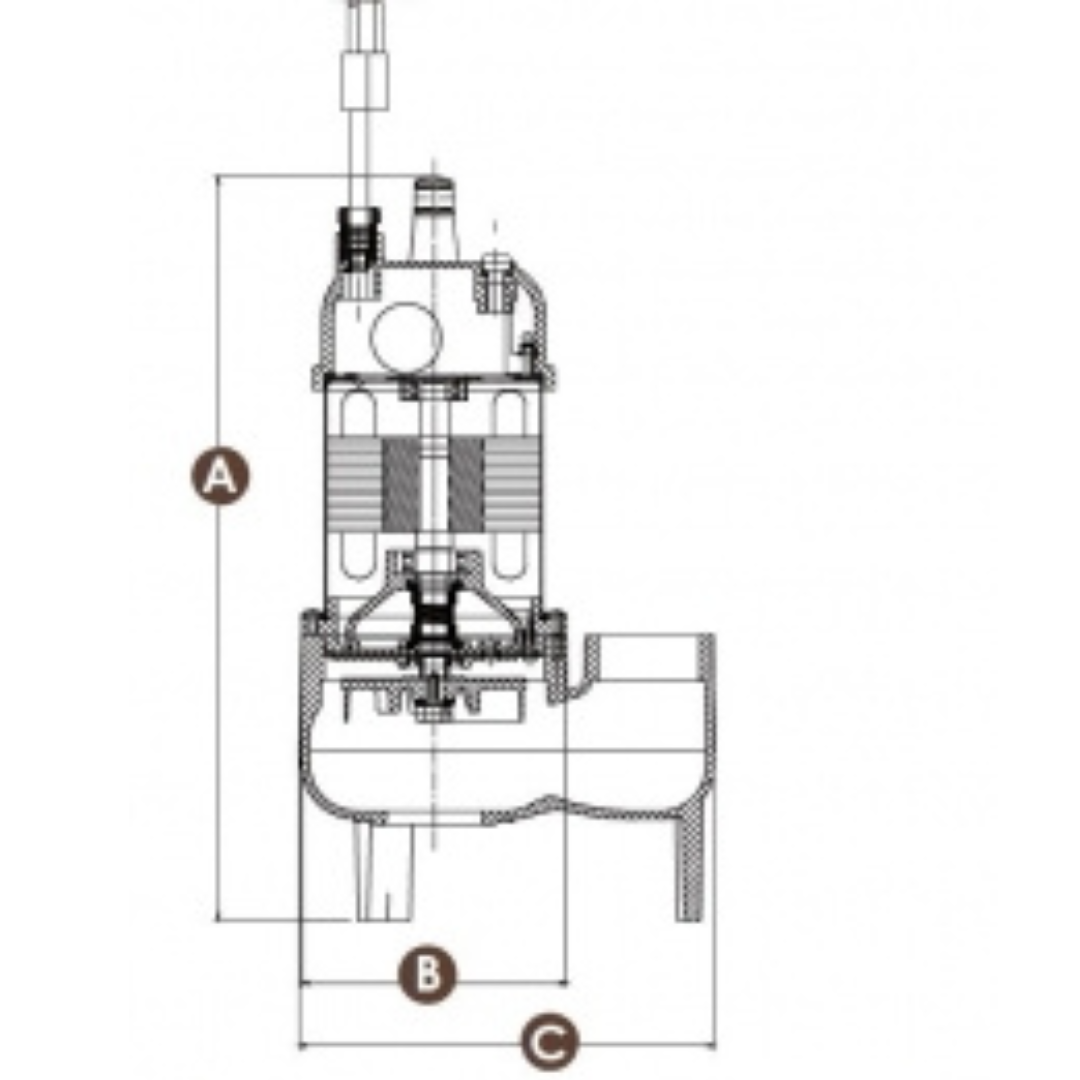

Dimensions:
