The WP20-HGX pump is a light weight, self-priming, engine driven pump supplied ready to operate & complete with hose tail fittings and suction strainer.

Common Applications:

• General water transfer
• Calf milk transfer
• Equipment washdown
• Firefighting
• De-watering flooded areas
• Filling water trucks
• Bee Sugar Syrup

Construction & Features

• Power: 3.6 kW ( 4.8 HP ) / 3600 rpm

• Engine Type Honda GX160 4 Stroke air cooled

• Max Flow rate: 580 LPM
• Max Pressure: 43 psi
• Self Priming: 7m Suction
• Max discharge head: 30 metres
• Inlet/Outlet sizes: 2 inch (50mm)
• Liquid temperature range: 2 - 35 deg C
• Maximum ambient temperature: 40 deg C

• Comes with 600ml of 15W/40
• Easy to start and simple to operate
• Starting system: Recoil
• Maximum Engine Revs: 3600rpm
• Self priming for ease of use
• Aluminium pump head with cast iron impeller and volute
• Mechanical Seal: Carbon/Ceramic/Nitrile
• O rings and gaskets: Nitrile
• 3.1L fuel tank
• Run time per tank: 2-3 hours
• Engine oil capacity 600ml
• Heavy duty roll frame with rubber feet
• Low oil cut out system will prevent the engine from seizing should the pump tip over while running or run low on engine oil
• Weight 24kg

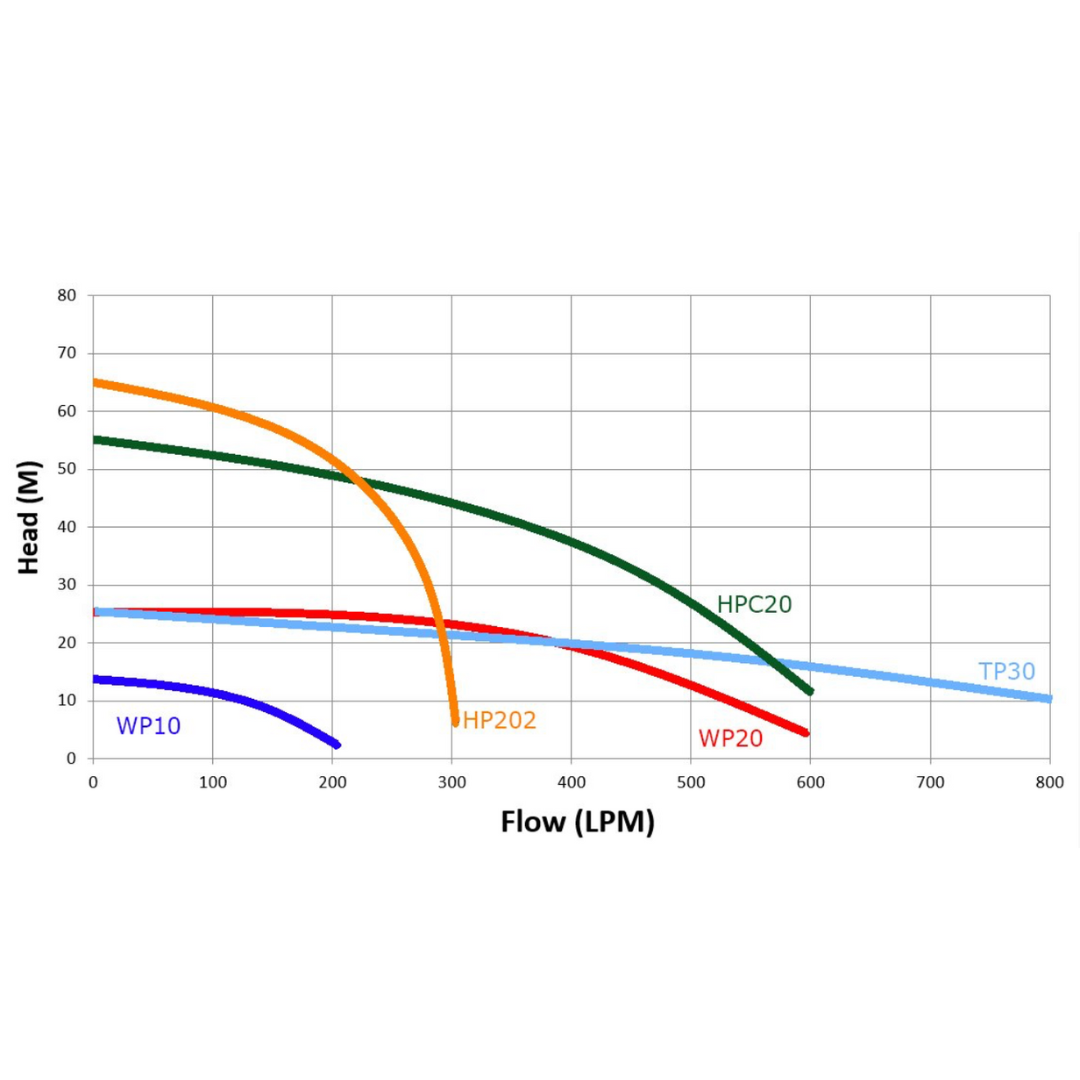

Pump performance is shown on the red line on the graph

**We recommend a Hansen foot valve with a hose tail to be connected to the suction pipe.

.
