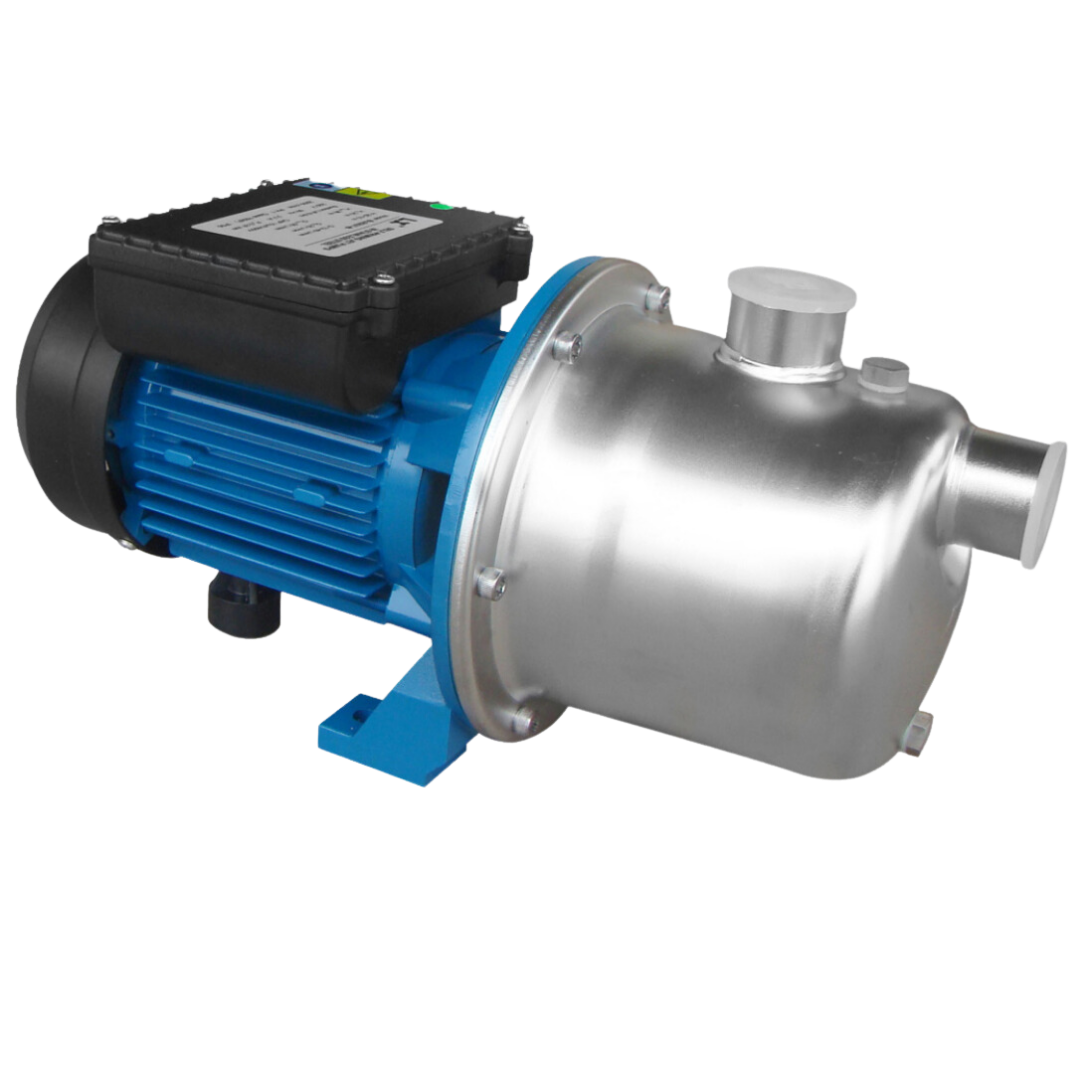

The BJZ Series Jet Pumps with their proven reliability and excellent self-priming ability make them ideal for any house or farm water supply system.

The Jet and venturi design allows suction lift up to 8m – great for drawing from rivers, dams & ponds, shallow wells and underground tanks. Easy to prime.

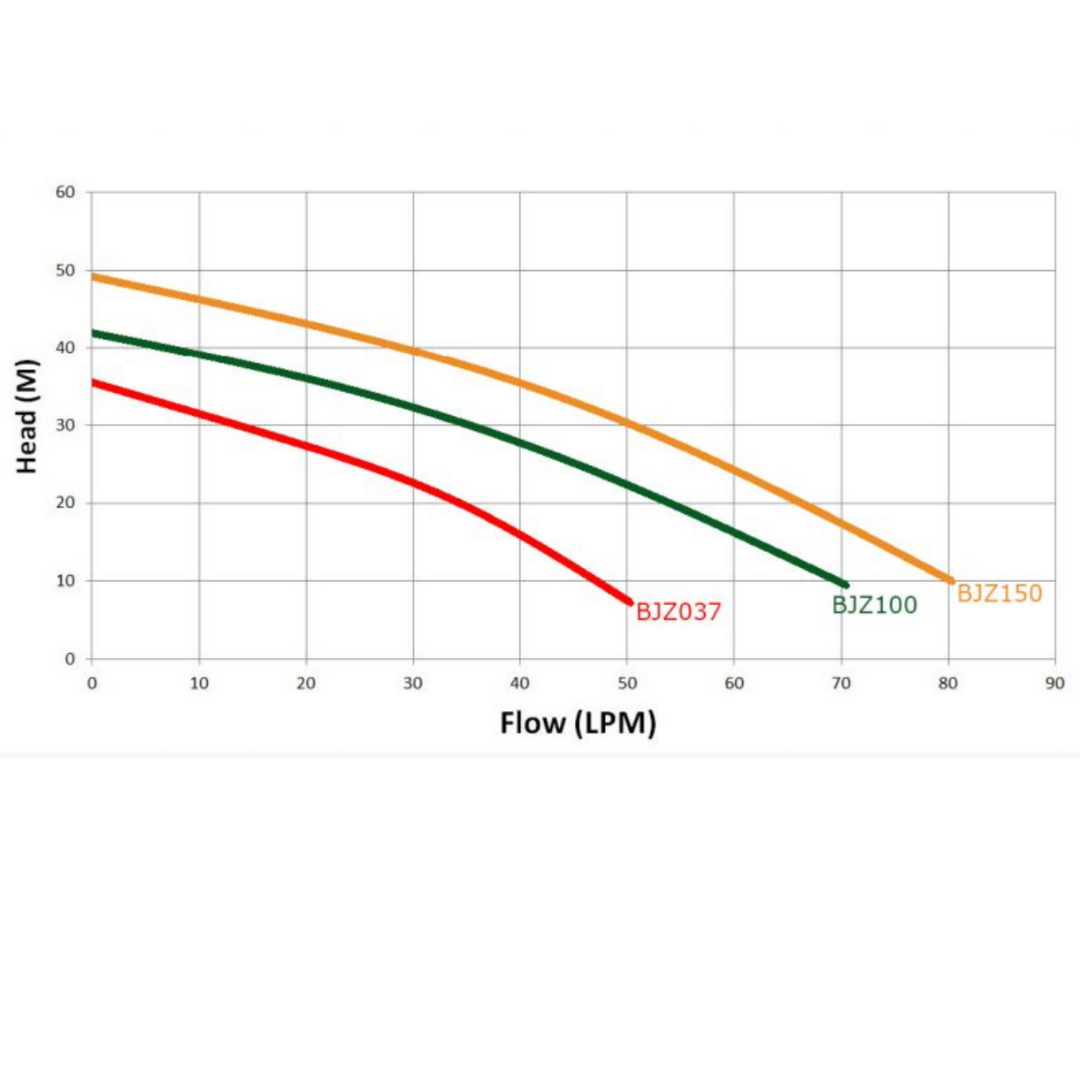

Perfomance:

• Max working pressure: 8bar
• Max liquid temperature: +60°c
• Max suction lift: 8m
• Max Head 42m
• Max Flow 70 litres per minute

Control Variations Available

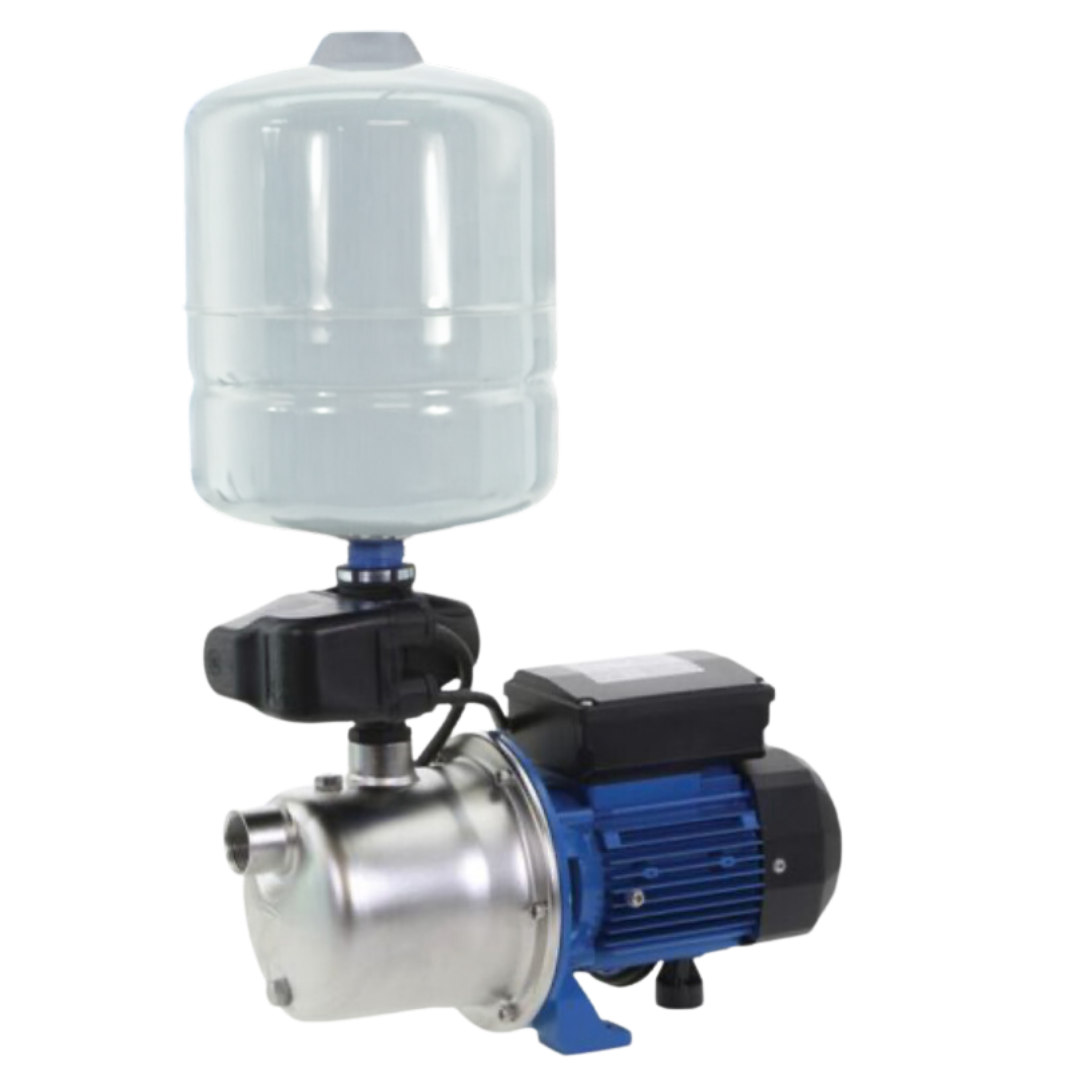

• Bundled with an Italian made Watertech Press Controller for automatic on/off operation. We recommend Controllers are used in simple applications without significant ground elevations where pressure adjustment may be required. We recommend this is installed with a Belkin Surge Protector to protect the controller. .

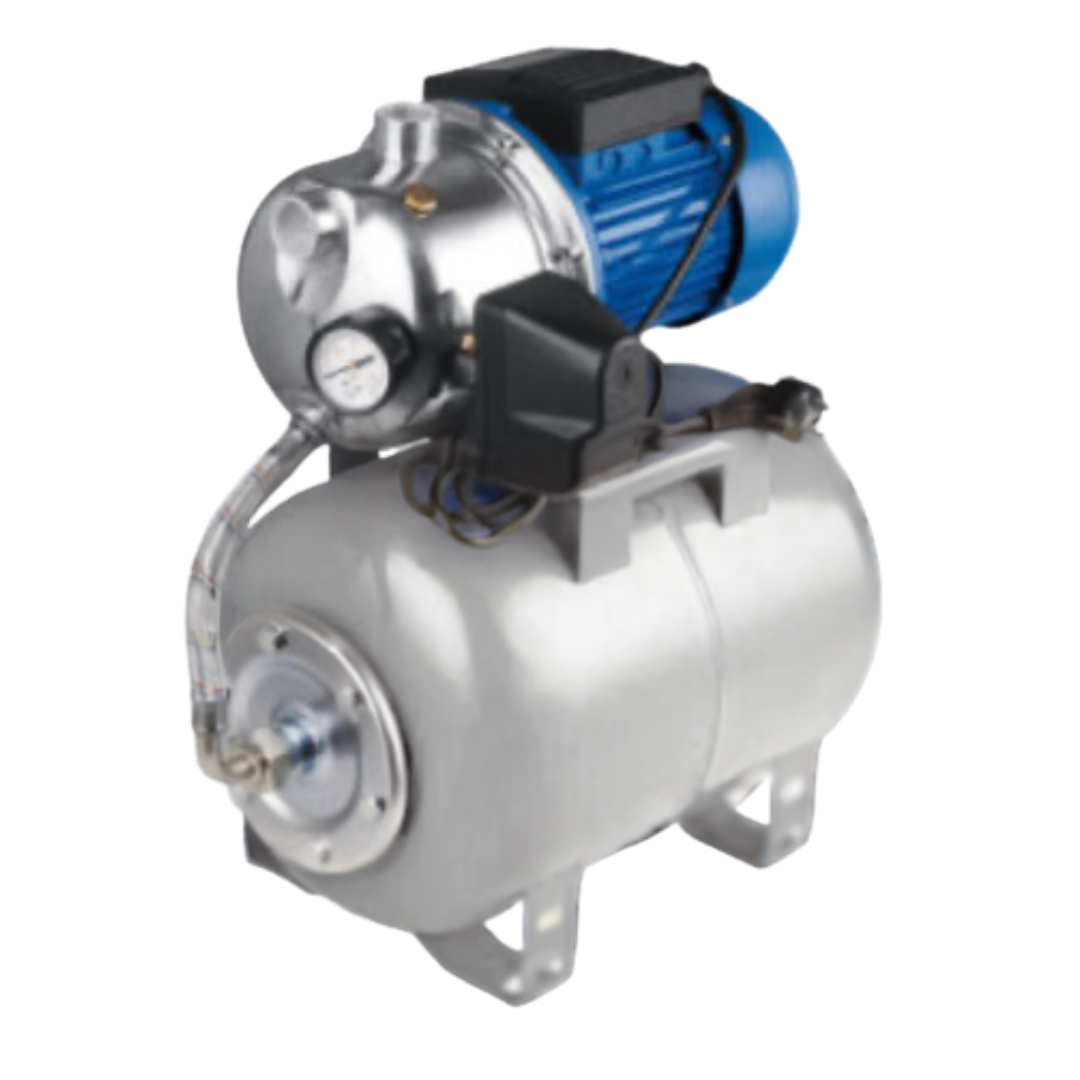

• Two Bundles available with a mechanical pressure switch and pressure tank. Choose an 8L tank to avoid pump cycling from drips and leaks.  Or choose a 24L tank for quick use such as toilet flushing, hand washing preventing pump cycling.  Mechanical Pressure Switches are useful in applications which require pressure adjustment to accommodate ground elevations or other specific site requirements. Pressure Switches must be used in conjunction with a Pressure Tank.

Some assembly required with these options

Technical Features

• Pump casing, seal plate, pump shaft & Impeller: 304 Stainless Steel
• Mechanical seal: Carbon/Ceramic
• Diffuser/Venturi: PPO
• O Rings: EPDM
• Motor mount and casing: Aluminium
• TEFC continuous duty motor
• Class B Insulation
• Ambient temperature: ≤50°C
• Internal overload protector
• IP55 protection
