The all new TP30-HGX self-priming engine driven pump is supplied ready to operate complete with hose fittings and suction strainer.

Construction & Features

• 5.5HP (4.1kW)
• Heads to 25 metres
• Flows to 1000 LPM
• Suction to 7 metres
• 80mm inlet/outlet ports
• Liquid: Clean water temperature range: 2 – 35 deg C
• Installation: Maximum ambient temperature: 40 deg C

• Carry frame
• Rubber mounting feet
• Honda GX200 motor
• Pipe connections suction/discharge: 80mm/80mm

Materials:

• Pump body, Diffuser, Impeller: Cast Iron
• Mechanical Seal: Carbon/Ceramic/Nitrile
• O rings and Gaskets: Nitrile

Engine Data:

• GX200 4.1 kW (5.5HP) single cylinder, four stroke air cooled
• Air cleaner: semi-dry
• Ignition: TCL, Starting: Recoil
• Fuel capacity: 3.1 litres
• Gross weight: 37.5 kg
• Package dimensions: 590 x 440 x 545

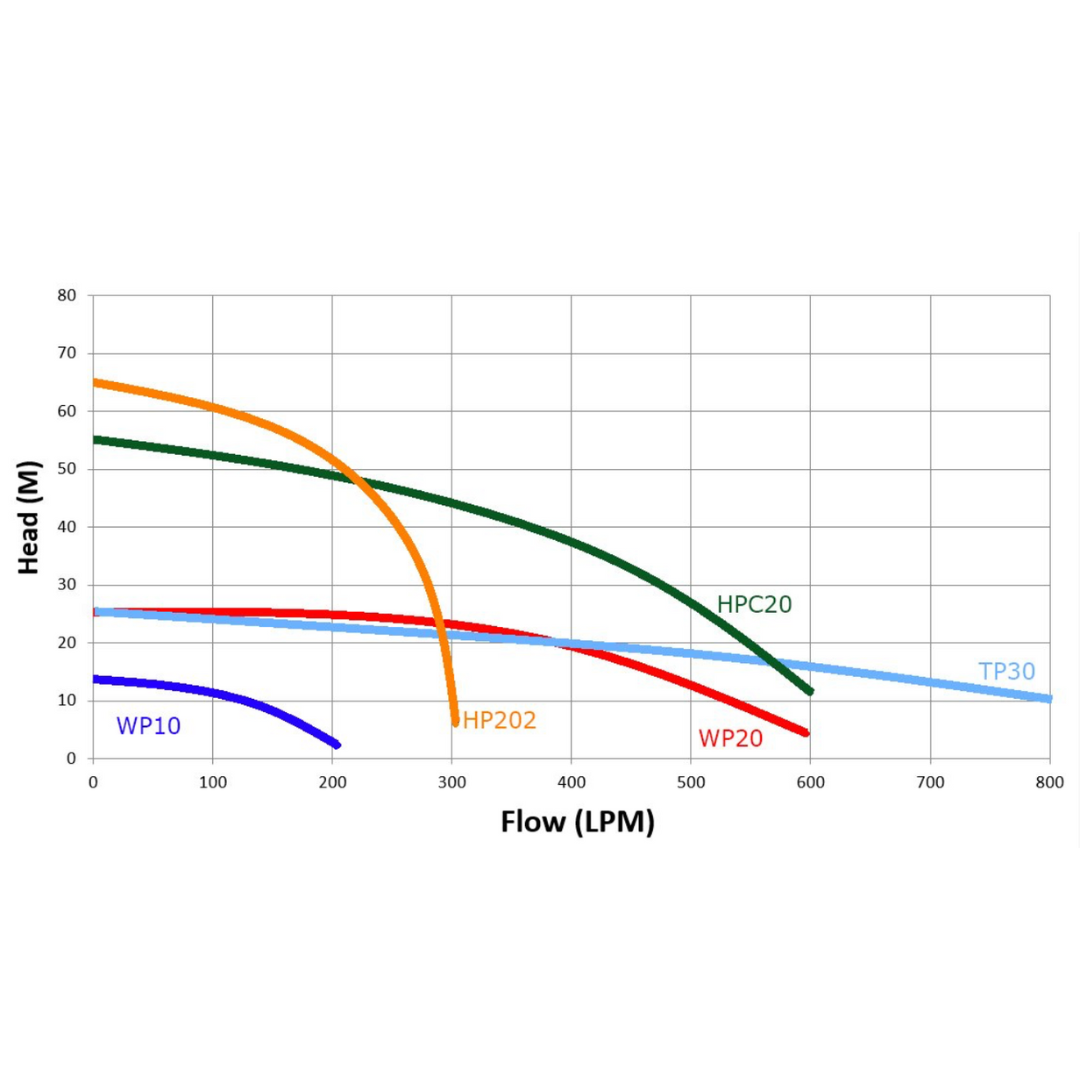

The pump performance is shown on the blue line on the graph

 .
