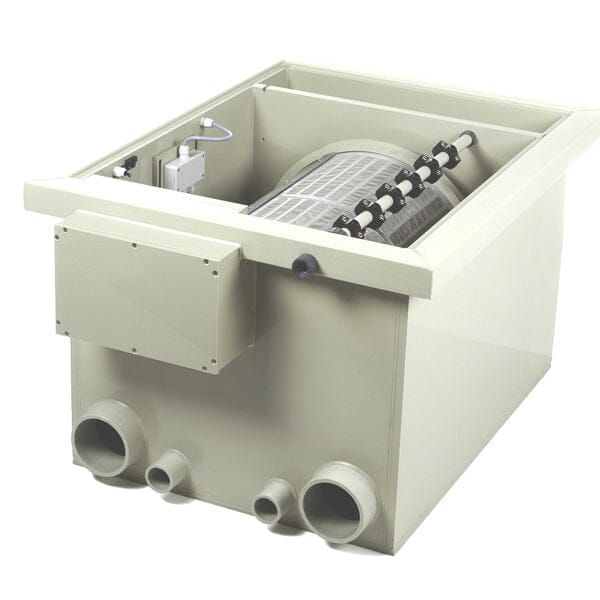

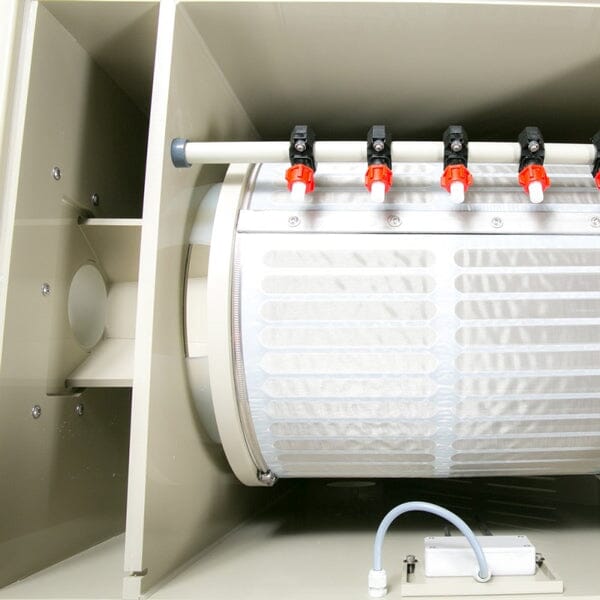

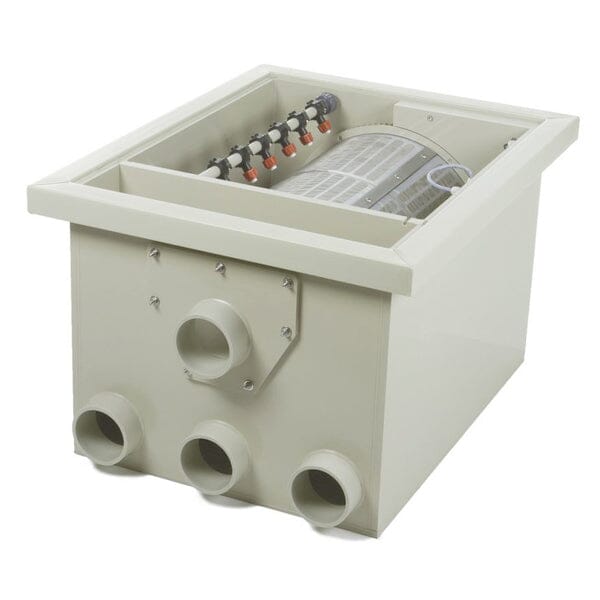

The Sea Side Aquatics PP-35 premium high-quality Rotary Drum Filter (RDFs) effectively remove micro debris, filtering particles down to 75 microns! As dirty water enters the filter, it passes through a rotating drum that physically separates debris from the water column, flushing it away automatically. This continuous automatic rinsing prevents the screen from clogging, enabling efficient filtration of even the smallest particles.

• Max Flow 9,250 GPH
• Max Pond Size 18,000 gal
• Gravity / Airlift / Pump Fed
• Installation height 17 cm

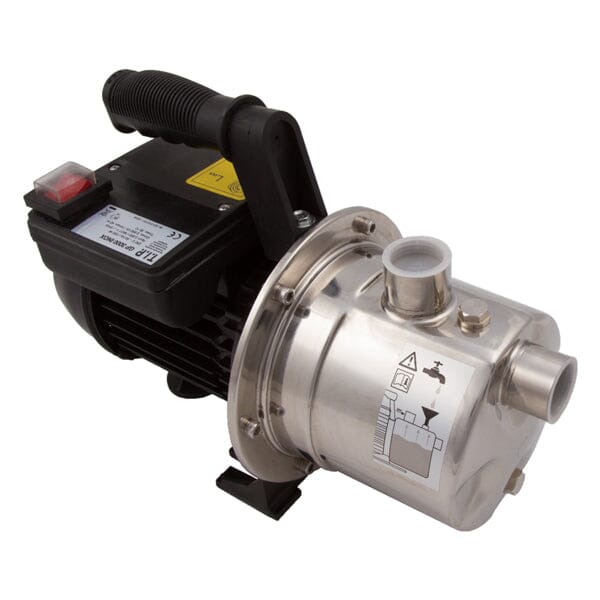

• External cleaning pump included (required)


• PP 15 mm housing / PP 20 mm drum
• Stainless steel 316/304 / Silicone seal

• 4 x 110 mm inputs
• 2 x 110 mm outputs (4 extra 110 mm outputs on the side for pump fed)
• 110 mm waste water drain
• Diameter drum 40 x 50 cm
• Screen panel 75 micron stainless steel 316
• Removable waste water container

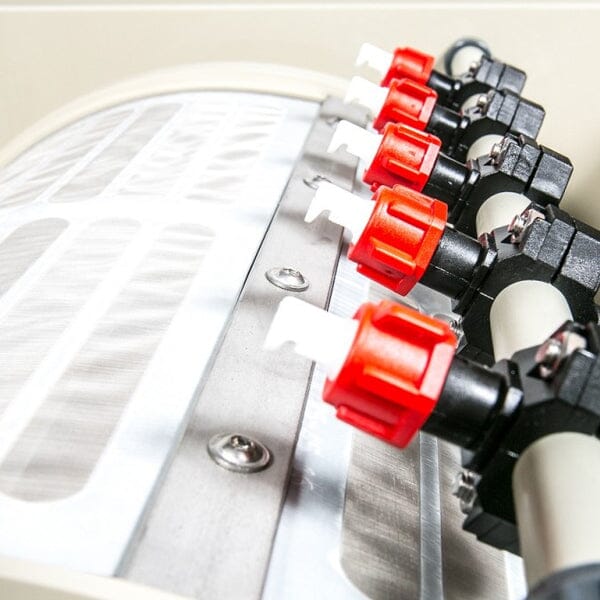

• Spray bar with removable mounting, high pressure PVC 40 bar Cover

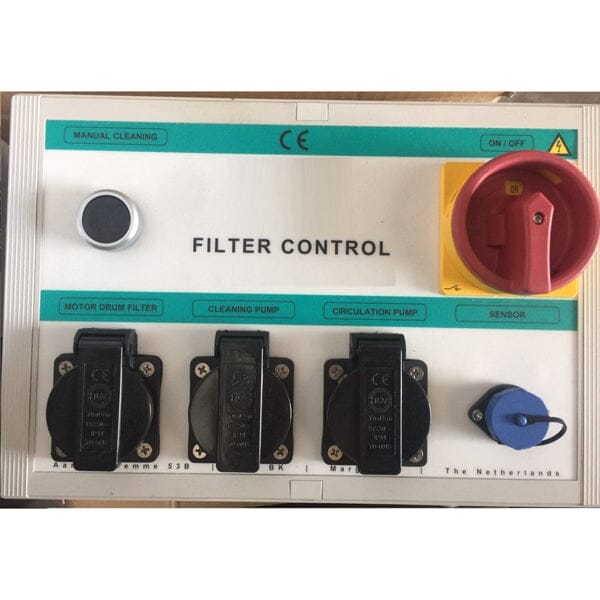

• Control box on filter
• Turn / flush manual operation
• Rinse level adjustable
• Turn / rinse time adjustable

Product PDF

Sea Side Aquatics PP-35 Rotary Drum Filter (RDF)
