Sea Side Aquatics Combi + RDF Filters stand at the forefront of their category. These units boast unparalleled effectiveness by seamlessly integrating both mechanical and biological filtration into a single, automated self-cleaning system. Dirty water is initially directed into the filter, where a rotating drum filter (RDF) separates debris down to 75 microns and automatically flushes it away. This efficient process is enabled by the automatic rinse function. The mechanically filtered water then flows through a fluidized bed of media, powered by air, providing oxygenation and facilitating biological filtration.

• Max Flow 9,250 GPH
• Max Pond Size 22,000 gal
• Gravity / Airlift / Pump Fed
• Pump Version has 30% less capacity
• Water running height 12 cm

• Housing PP 10/15 mm / Drum PP 15 mm
• RVS 316/304 / UV resistant Seal
• Precise CNC machine cut PP-construction


• Standard inputs and outputs acc. drawing
• Changes to inputs and outputs possible
• 1 x 110 mm Waste Outlet
• Diameter of drum 40 cm x 50 cm
• Patented woven 75/120 micron stainless steel mesh
• 2 x 90 mm Drum-Bypass
• Removable spraybar
• Removable waste water gutter / Waste cleaning optional
• 2 Built-in air disc of 35 cm
• Moving bed for 200 liter helix
• Mat chamber capacity 300 litres
• Installed Cleaning pump 5 Bar
• 50 NM drive engine with 4 RPM
• With Lid

• Automatic cleaning, plug and play with Sensor
• Manual operation run/wash
• Cleaning (turn/flushing) time adjustable
• Cleaning level adjustable
• 3 plugs to have control over Drum filter motor, Cleaning and Pond-pump
• Standard dry run protection for pond pump
• All components built into modules which quickly changeable


Product PDF

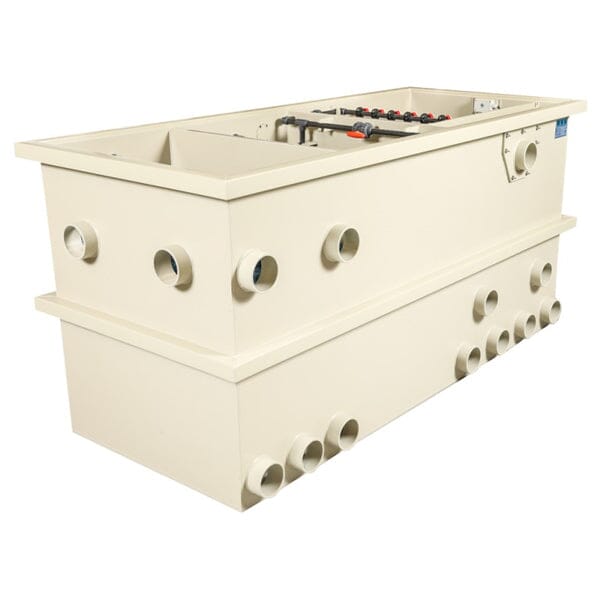

Sea Side Aquatics C35M RDF Filter + Moving Bed and Mat
