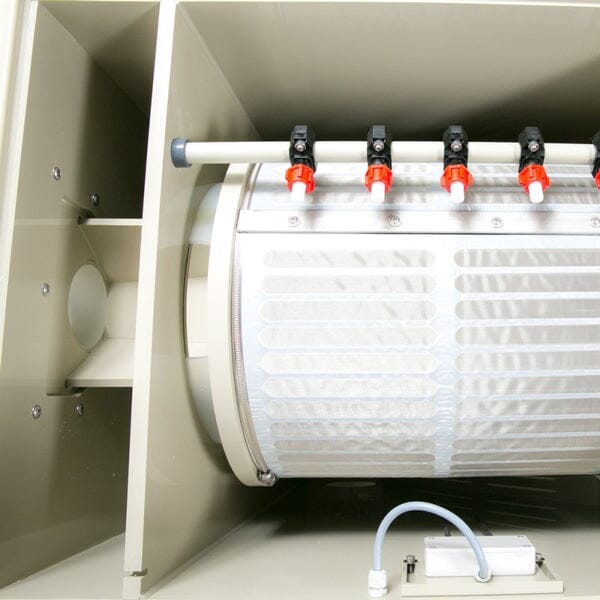

Sea Side Aquatics Combi + RDF Filters stand at the forefront of their category. These units boast unparalleled effectiveness by seamlessly integrating both mechanical and biological filtration into a single, automated self-cleaning system. Dirty water is initially directed into the filter, where a rotating drum filter (RDF) separates debris down to 75 microns and automatically flushes it away. This efficient process is enabled by the automatic rinse function. The mechanically filtered water then flows through a fluidized bed of media, powered by air, providing oxygenation and facilitating biological filtration.

• Max Flow 6,600 GPH
• Max Pond Size 10,000 gal
• Gravity / Airlift / Pump Fed
• Pump fed loses 30% Flow
• Installation height above water level 16 cm
• Includes k1 media and external cleaning pump (required)

• Housing PP 8 mm / PP15 mm / Drum PP 20
• Stainless steel 316/304 / Silicone seal
• PP Casing Cut With A CNC Machine

• Standard inputs and outputs according to drawing
• 1 x 110 mm Waste water outlet
• Diameter of the drum 38 cm x 40 cm
• Sieve panel 120 or 75 micron stainless steel 316
• Drum Bypass 2 x 90 mm

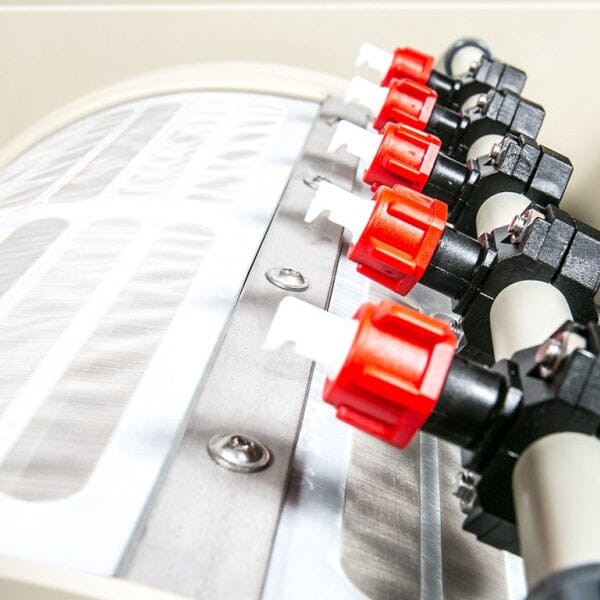

• Demountable spray bar
• Removable flushing channel
• 40 NM drive motor with 2.5 rpm
• With a lid

• Automatic cleaning, plug and play with stainless steel float
• Turn / rinse manual control
• Adjustable turn / flush time
• Rinse level adjustable

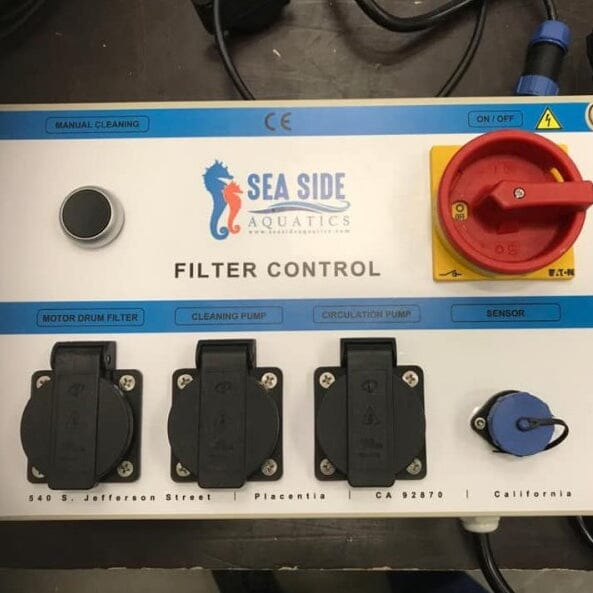

• Sockets for flushing pump, pond pump and drum drive motor
• Standard dry run protection for pond pump
• All parts built in modules and therefore quickly interchangeable
• Bio chamber for 90 liters of Helix

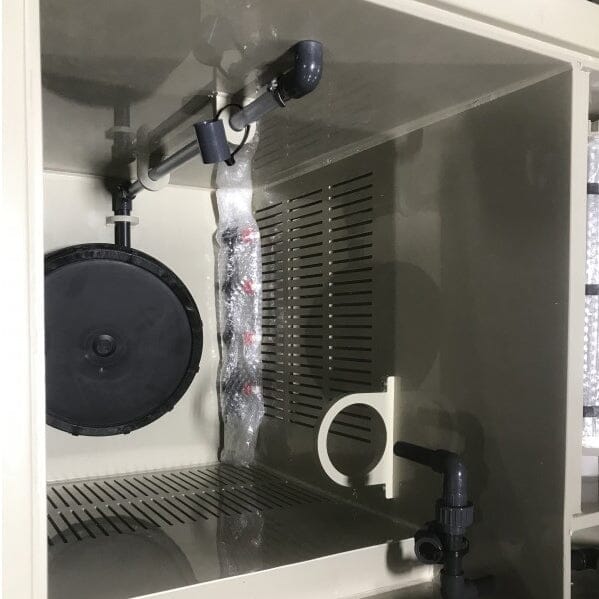

• Air disc of 34 cm
• Supplied with comprehensive manual

Product PDF

Sea Side Aquatics Entry C25 RDF Combi Filter
