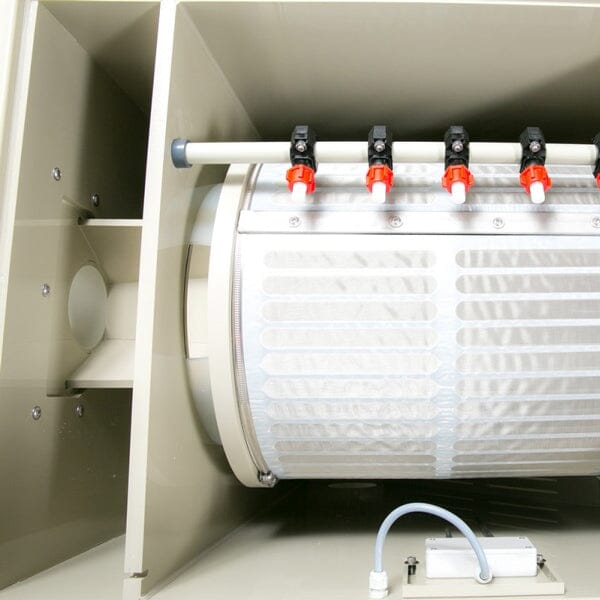

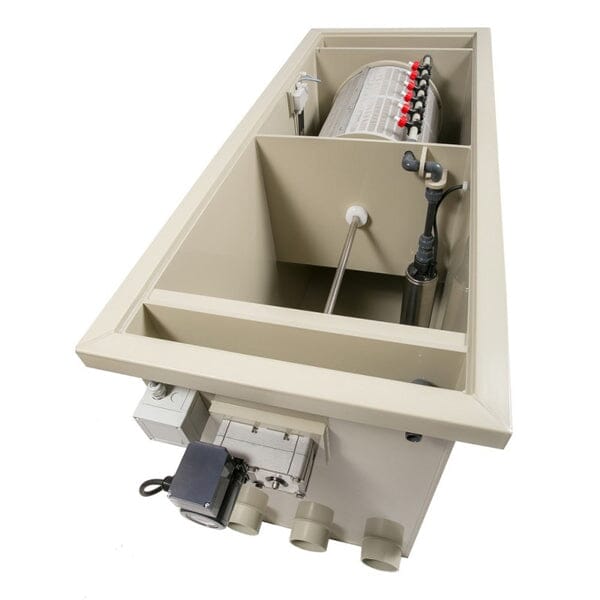

Sea Side Aquatics Combi+ RDF Filters lead the market in filtration technology, seamlessly combining mechanical and biological filtration into an automated self-cleaning system. Water enters the filter, where a Rotating Drum Filter (RDF) captures debris as small as 75 microns and automatically flushes it out through an integrated rinse function. The filtered water then flows through a fluidized bed of K1 media, aerated by an air pump, to enhance oxygenation and biological filtration efficiency.

Key Features:

• Max Flow Rate: 9,250 GPH
• Max Pond Size: 22,000 gallons
• Installation Options: Gravity-fed, airlift, or pump-fed
• Compact Installation Height: 14 cm

Materials & Components:

• Housing: P 15 mm, Drum: PP 20 mm
• Stainless Steel (316/304) with silicone seals for durability

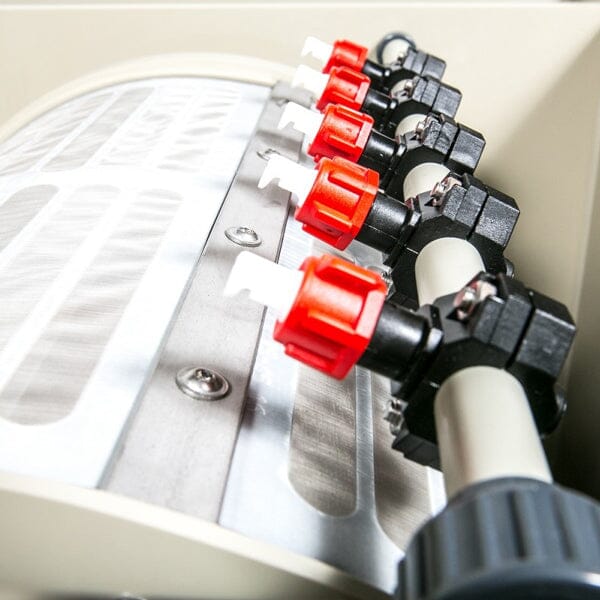

• Spray Bar: High-pressure PVC rated for 40 bar
• Media Included: 150L K1 media
• Air Disc: 35 cm with 20/25 mm connection

Specifications:

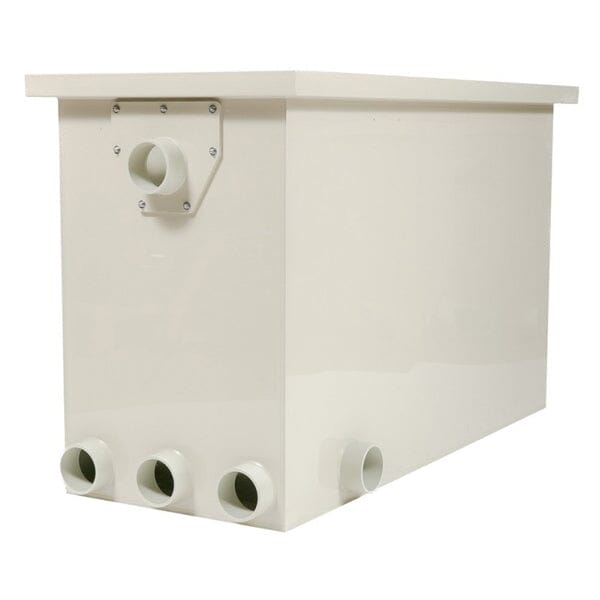

• Inputs: 3 x 110 mm
• Outputs: 3 x 110 mm (+2 extra outputs for pump-fed systems)
• Waste Drain: 110 mm
• Drum Dimensions: 40 x 40 cm
• Screen Panel: 75-micron stainless steel

Additional Features:

• Comes with a bag of K1 media, air pump, and external cleaning pump (required for installation)
• Includes a removable waste container for easy maintenance

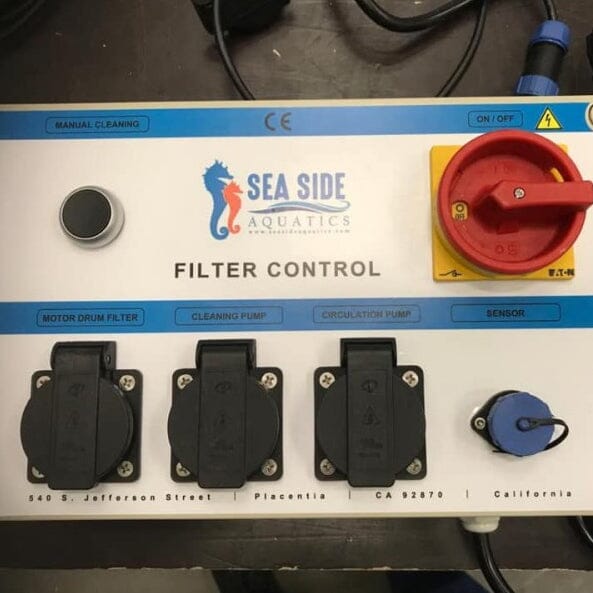

• Control Box: Allows manual operation for turn/flush functions
• Adjustable Settings: Rinse level, turn time, and rinse duration

This filter offers advanced filtration performance, durability, and minimal maintenance, making it ideal for large ponds and demanding aquatic systems.
