These pumps with peripheral impeller are able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves.

For the correct functioning of the pump, pump clean water, or non-aggressive liquids only, without sand or other solid impurities.

Uses include pressure systems for household supply, garden watering, irrigation, pressured supply from rain tank, water transfer.
This pump is excellent for getting water up to tanks situated high on hills with a maximum head of 55m (not working head)

Pumps should be installed in a covered area, protected against the weather

Variations Available
Option 1: BARE PUMP: Buy the pump only if you already have a controller system to use with it or will manually turn the pump on and off. WARNING: DO NOT leave the power to the pump on when the water supply is turned off.

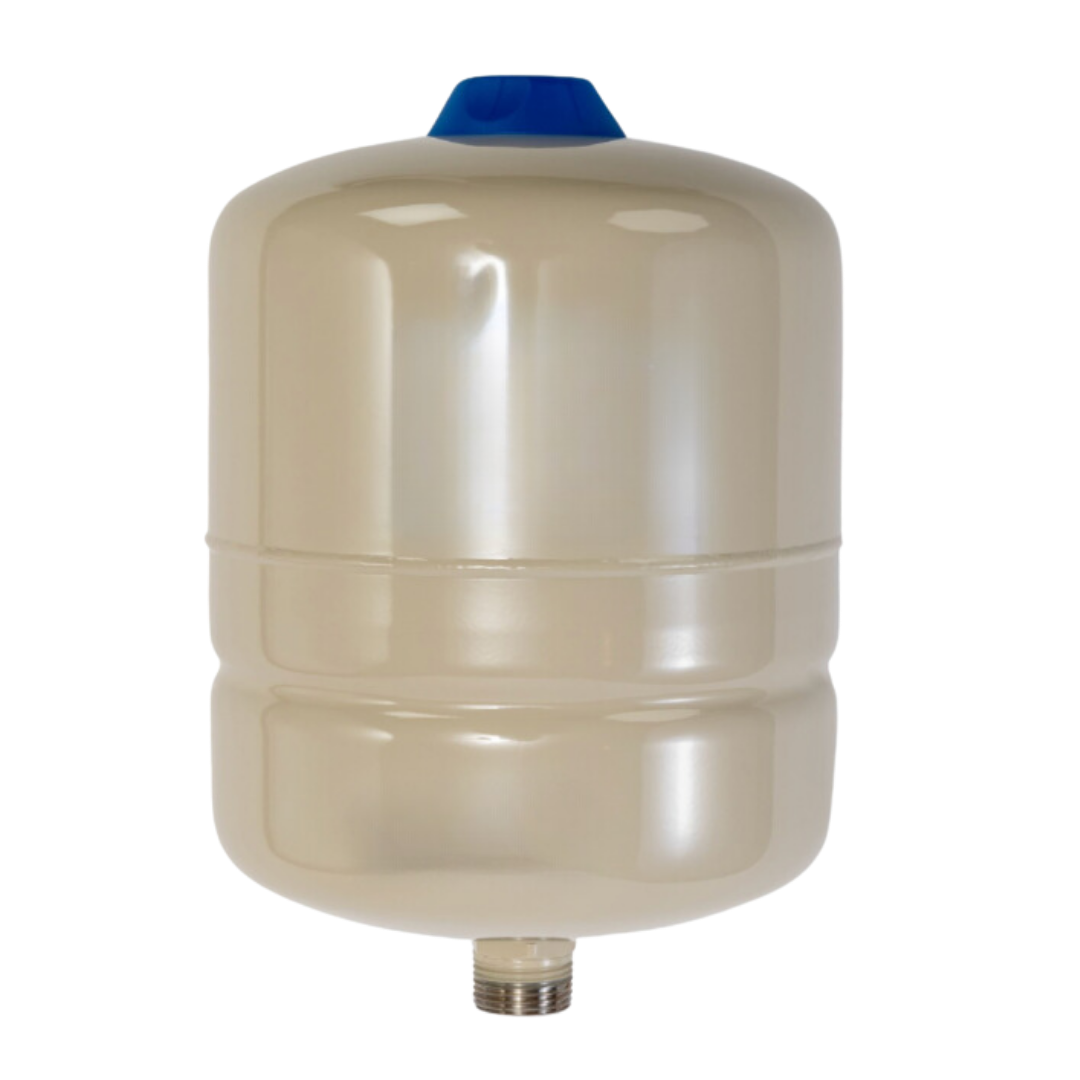

Option 2: Pump, Pressure Switch and 8L Tank: Buy for auto on/off of the pump. Especially for situations where pump needs to pump up hills etc (high head).  Comes with 8L tank and pressure switch. Some assembly required.

PHOTOS:
Photo 1 shows actual pump (Listed in variants as Bare Pump)
Photo 2 shows similar pump with Pressure Switch Controller (representative photo - colours and shape may differ slightly)

Performance:
Maximum Flow 50 lpm
Maximum Head 55m

Shown as the middle curve on the graph

Construction:

• 0.55kW Motor Single Phase

• Pump body: Cast iron

• Motor housing: Aluminum

• Shaft: 45#steel/stainless steel

• Impeller: Brass

• Motor: closed, externally ventilated

• Insulation Class: B

• Protection class: IP44

• Built in Thermal Protector

• Duty: continuous rated

• Mechanical seal: Graphite/SiC/NBR

• Operating Limitations

• Max ambient temperature up to 40°C Max.fluid temperature up to 80°C Max pressure up to 10bar

• Inlet and Outlet both 1"

• 1m Cable and NZ Plug

• 1 Year Warranty
