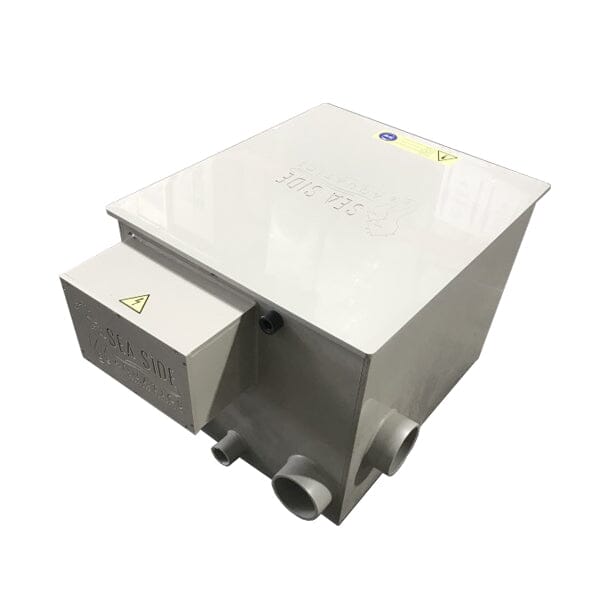

The Sea Side Aquatics Eco-22 premium high-quality Rotary Drum Filter (RDFs) effectively remove micro debris, filtering particles down to 75 microns! As dirty water enters the filter, it passes through a rotating drum that physically separates debris from the water column, flushing it away automatically. This continuous automatic rinsing prevents the screen from clogging, enabling efficient filtration of even the smallest particles.

• Max Flow 5,800 GPH
• Max Pond Size 11,500 gal
• Gravity / Airlift / Pump Fed
• Installation height 17 cm
• 3 Probes Sensor

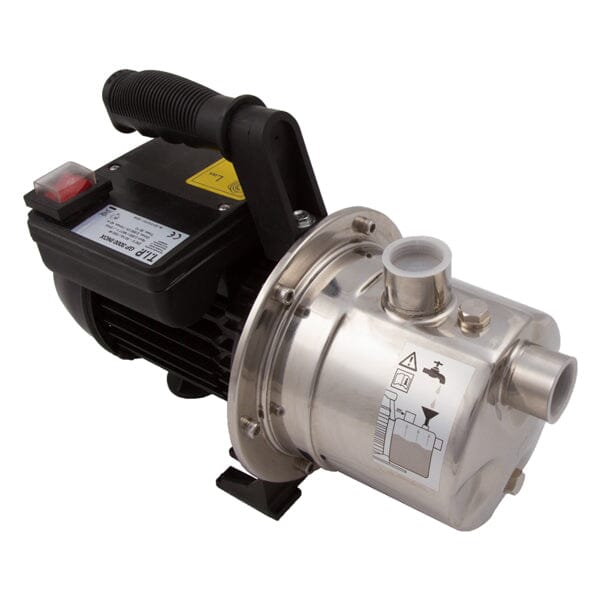

• External cleaning pump included (required)


• PP 10 mm housing / PP 15 mm drum
• Stainless steel 316/304 / Silicone seal

• 2 x 110 mm inputs
• 2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
• 110 mm waste water drain

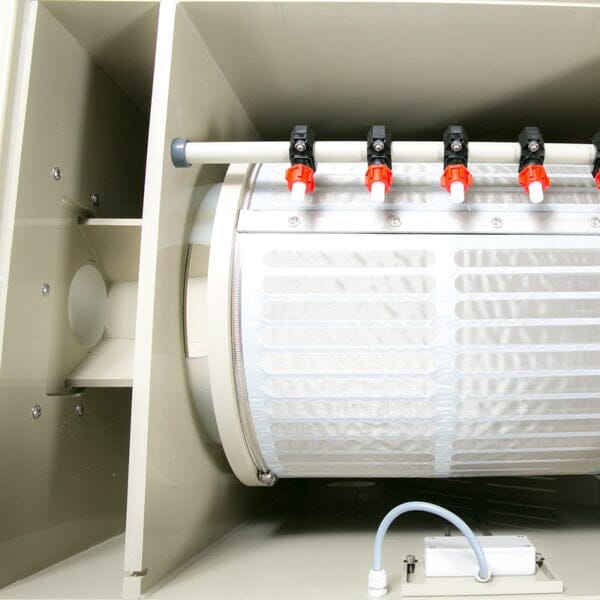

• Diameter drum 40 x 40 cm
• Screen panel 75 micron stainless steel 316
• Removable waste water container

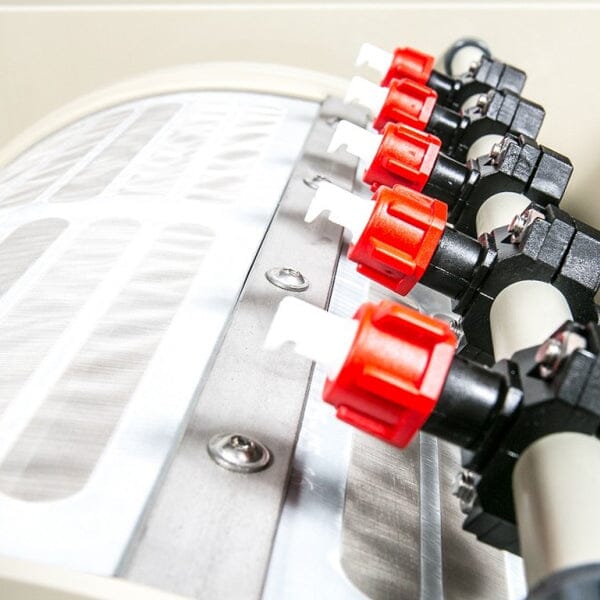

• Spray bar with removable mounting, high pressure PVC 40 bar Cover

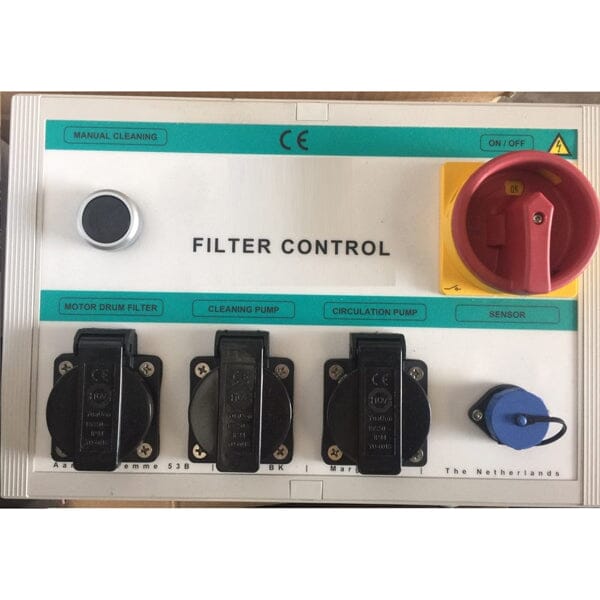

• Control box on filter
• Turn / flush manual operation
• Rinse level adjustable
• Turn / rinse time adjustable

Product PDF

Sea Side Aquatics, Eco 22 Wifi Version RDF Filter
