Alternative to submersible pump for lifting water from bores or wells

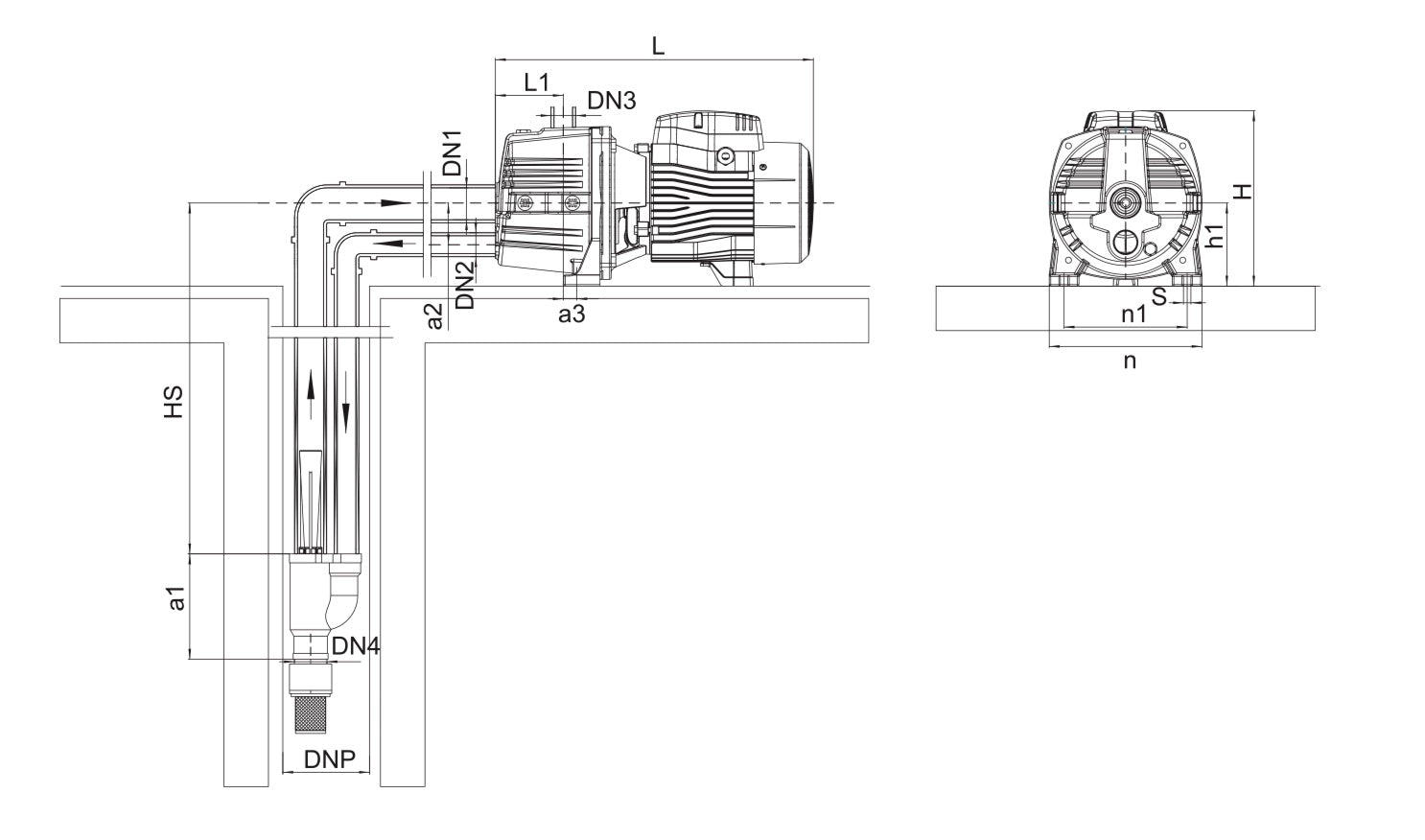

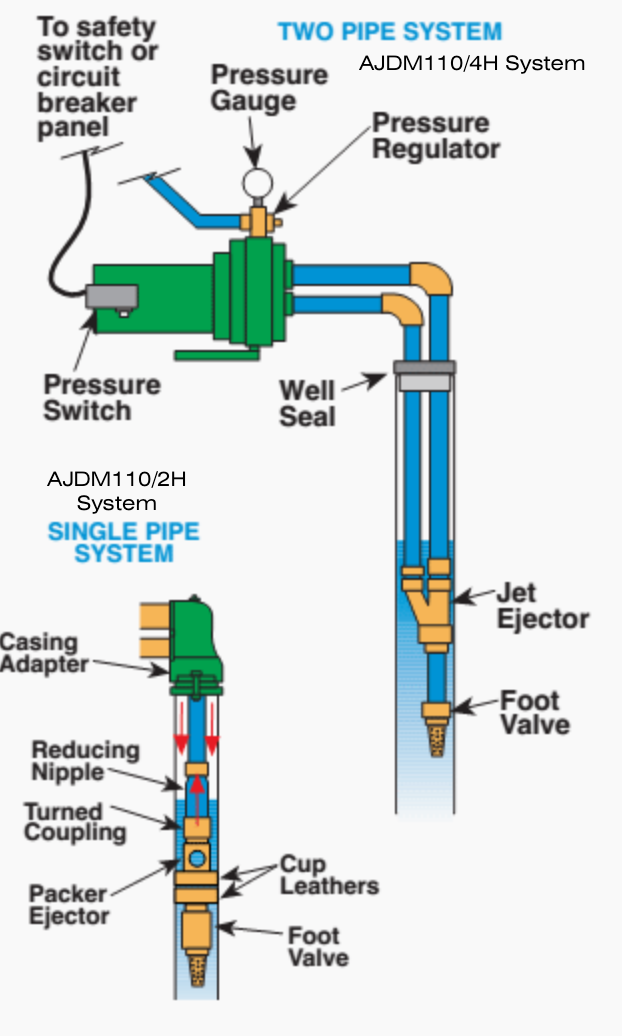

For 4" wells. Jet & Venturi system creates suction, brings water to the surface
What can this pump do?
Max Discharge 67m head
Max Pressure 95 PSI
Max Flow +34 lpm
Max suction lift 40m
Suction at
15m: 16 lpm at 47m head
20m: 14 lpm at 43m
25m: 12 lpm at 38m
30m: 8 lpm at 37m
35m: 6 lpm at 33m
40m: 3 lpm at 31m
Structure
1.1kW motor Single Ph
Cast Iron body
AISI304 Stainless Steel Shaft, Impeller
Carbon/Ceramic Mechanical Seal
1" Outlet
Specs
Max Liquid Temp 40C
Insulation Class F
Protection Class IPX4
Built in Thermal Protector
2Yr Manufacturer Warranty on faulty parts or workmanship
Click for a data sheet on this product and others in this range
